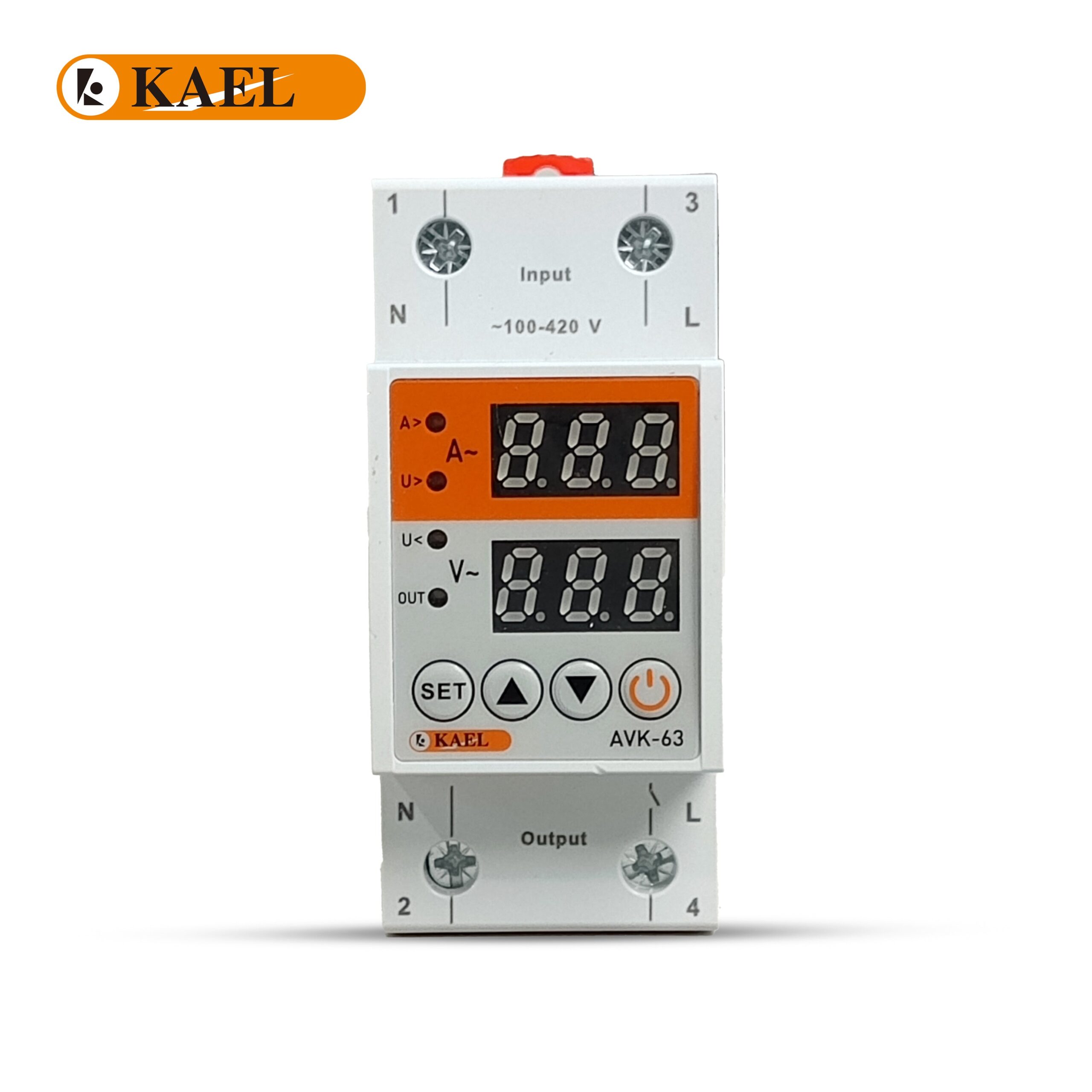

KAEL AVK-63 63A AC Adjustable Voltages & Current Protector Relay
Safeguard Your Electrical Systems with Precision Control
Ensure maximum safety and efficiency in your electrical systems with the KAEL AVK-63 63A AC Adjustable Voltages & Current Protector Relay — a high-performance protection device designed for industrial, commercial, and residential use. This advanced relay offers comprehensive protection against overcurrent, overvoltage, undervoltage,
Key Features of KAEL AVK-63
- Adjustable Overcurrent Protection (1A–63A)
- High Voltage Protection (230V–300V AC)
- Low Voltage Protection (120V–210V AC)
- Dual LED Display for Real-Time Current and Voltage Monitoring
- UL Listed (UL04V-0) for Safety and Reliability
- DIN Rail Mounting for Easy Installation
- Customizable Delay Settings for Start-Up, Reset, and Response Times
Why Choose the KAEL AVK-63?
The KAEL AVK-63 is engineered for precision, durability, and ease of use. Whether you’re protecting motors, compressors, HVAC systems, or home appliances, this relay ensures stable and safe operation by cutting off power during abnormal conditions — all while providing clear visual feedback via its intuitive LED indicators.
With adjustable timing settings and real-time monitoring, it gives you full control over your system’s performance and safety.
Technical Specifications
|
Feature
|
Specification
|
|---|---|
|
Model
|
KAEL AVK-63
|
|
Rated Voltage
|
220VAC, 50/60Hz
|
|
Max Current Rating
|
63A
|
|
Overcurrent Range
|
1A – 63A
|
|
High Voltage Range
|
230V – 300V AC
|
|
Low Voltage Range
|
120V – 210V AC
|
|
Low Voltage Fuse Setting
|
115V Fixed
|
|
Input Voltage Range
|
100V -300V AC
|
|
Mounting Type
|
DIN Rail
|
|
Certification
|
UL Listed (UL04V-0)
|
