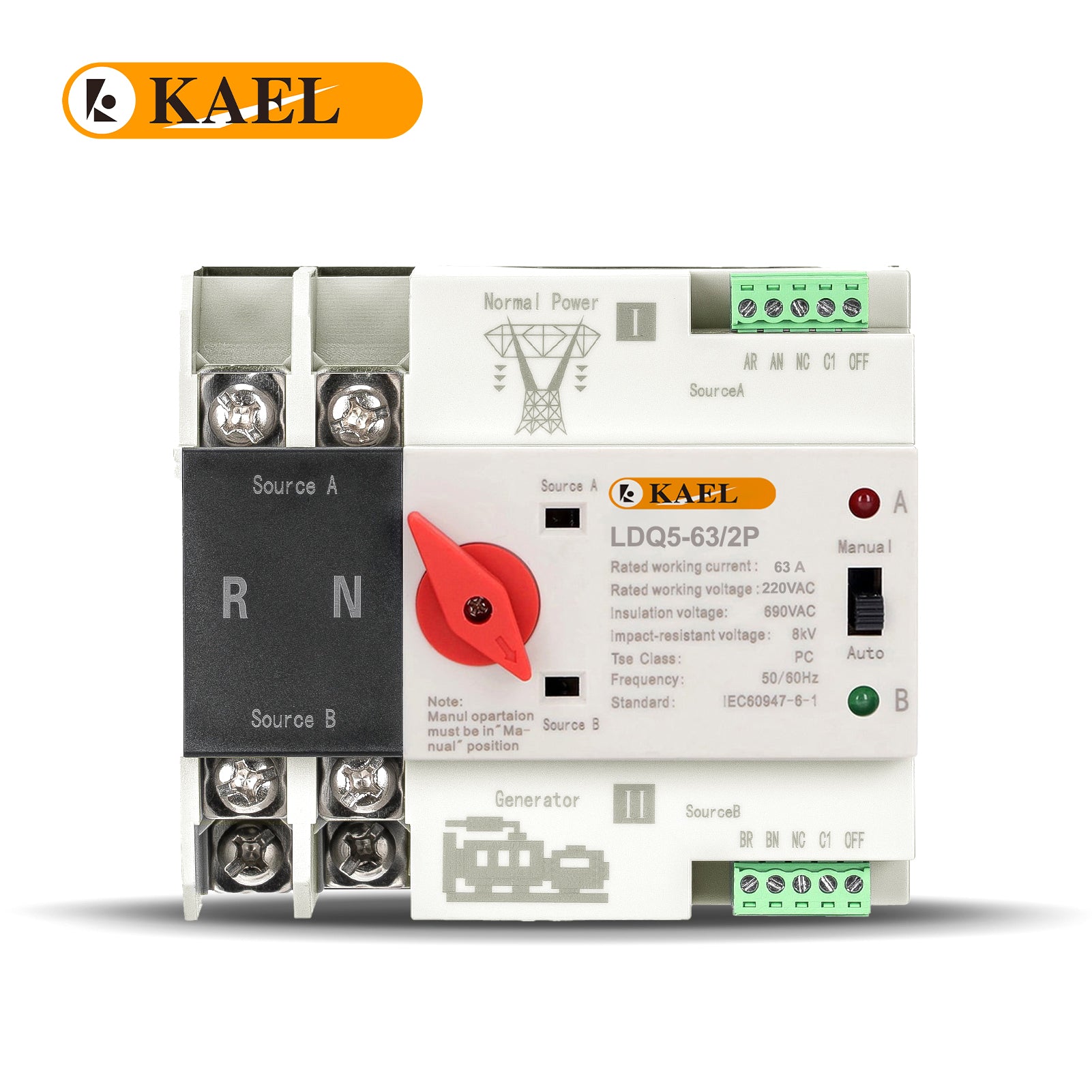

KAEL LDQ5-63/2P Red Nob AC Single Phase Din Rail 220V Dual Power Automatic Transfer Switch ATS

Description

KAEL LDQ5-63/2P Automatic Transfer Switch – 63A 2P | 220V AC | Dual Power | DIN Rail

The KAEL LDQ5-63/2P Dual Power Automatic Transfer Switch is a compact and efficient solution for small to medium power systems. With a 63A capacity and 2-pole design, it automatically switches between city power and generator to ensure uninterrupted operation of your critical devices and appliances.

Key Features:

• Automatic Dual Power Switching: Seamlessly switches between two power sources (e.g., utility and generator) without manual intervention.

• Rated Current: Supports up to 63A, ideal for residential or small commercial setups.

• 2P Configuration: Designed for single-phase systems (Live + Neutral), ensuring reliable circuit protection.

• Voltage & Safety: Operates at 220V AC, with high 690V insulation voltage and 8kV surge resistance for enhanced safety.

• Manual/Auto Modes: Simple mode selection with a manual override for added control.

• DIN Rail Mounting: Quick and secure installation in standard electrical enclosures.

• Standards Compliance: Conforms to IEC60947-6-1, ensuring international safety and performance standards.

Specifications:

• Model: LDQ5-63/2P

• Current Rating: 63A

• Rated Voltage: 220V AC

• Poles: 2P (Live + Neutral)

• Operation Modes: Manual / Auto

• Mounting Type: DIN Rail

• Insulation Voltage: 690V

• Impact Resistance: 8kV

• Frequency: 50/60Hz

• Application: Single-phase ATS for homes, shops, and backup systems

Ideal for:
Residential backup power, small offices, shops, solar systems, and generator-based power systems.

Note: For manual operation, ensure the selector is set to “Manual” position before switching sources.
