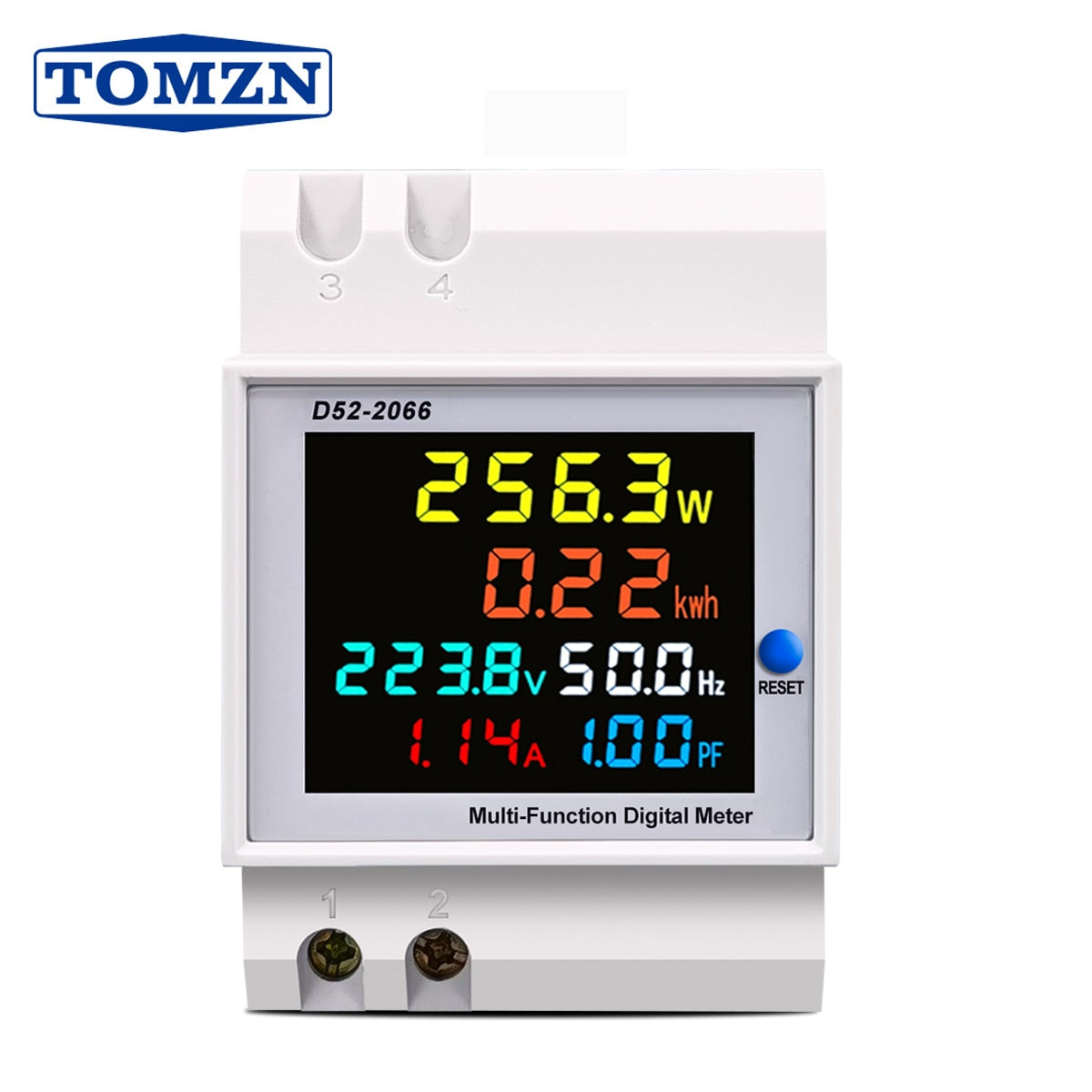

Tomzn D52-2066 6IN1 din rail AC 220V 100A Voltage Current KWH Electric energy meter with Frequency and Power Factor

Description

Here are the details for the Tomzn D52-2066 6IN1 Din Rail AC 220V 100A Voltage, Current, KWH Electric Energy Meter with Frequency and Power Factor:

Features:

• Measurement Accuracy: ±1% ±2 words for reliable data.
• Measuring Range:
  • AC Voltage: AC40-300V
  • Alternating Current (AC): 0.1-100A, with a display resolution of 0.01A.
• Power Frequency: 45Hz-65Hz for various power systems.
• Power Factor (PF): Measures power factor from 0.00 to 1.00.
• Electricity (KWH) Measurement:
  • Range: 0- 99999 kWh.
• Measuring Speed: Approximately 2 times per second.
• Dimensions: 54mm x 80mm x 64mm (compact size for easy installation).
• Installation Method: Rail type for convenient din rail mounting.

Applications:

This 6-in-1 energy meter is designed to measure and monitor various electrical parameters, including voltage, current, power factor, active power, energy consumption (kWh), and frequency. It’s suitable for residential, commercial, and industrial use where accurate energy monitoring is required.

This meter is ideal for applications where precise control and monitoring of electricity consumption and system parameters are necessary.
