Description

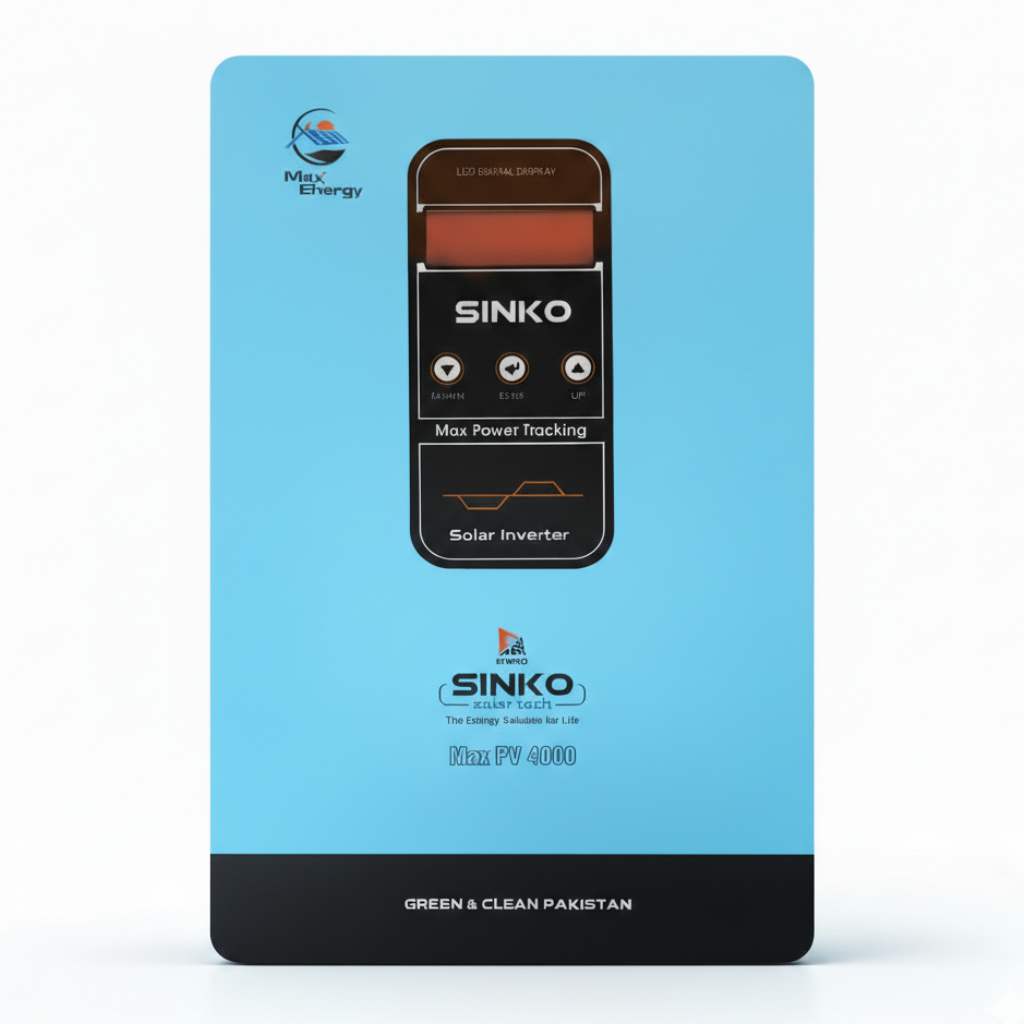

The Sinko PV4000 Solar Inverter is a reliable and efficient power solution designed for residential and small commercial solar systems. Built with load shifting technology, it intelligently prioritizes solar energy to reduce electricity costs while ensuring stable power output.Supporting a maximum PV power of 4000W with a wide 50–300V DC solar input range, the Sinko PV4000 is compatible with multiple solar panel configurations. Its modified sine wave output makes it suitable for everyday appliances, lighting, and backup power needs.
| Parameter | Specification |
| Model | Sinko Inverter Max PV 4000 |
| Waveform | Modified Sine Wave |
| Mode | Load Shifting Mode |
| PV Voltage Range | 50 Vdc (Min) – 300 Vdc (Max) |
| Nominal PV Range | 200 Vdc x 1 |
| Max PV Current | 14 Amp |
| Max PV Power | 4000W |
| AC Input Voltage Range | 180 Vac (Min) – 250 Vac (Max) |
| Max AC Input Current | 10 Amp |
| AC Output Voltage | 225 Vac |
| Max AC Output Power | 2.8 KW |
| Max AC Output Current | 11 Amp |
| Protections | Over Load, Auto Fan, Over Heat, Short Circuit |
| Product Dimensions (L × W × H) mm | 415 × 285 × 450 |
