Description

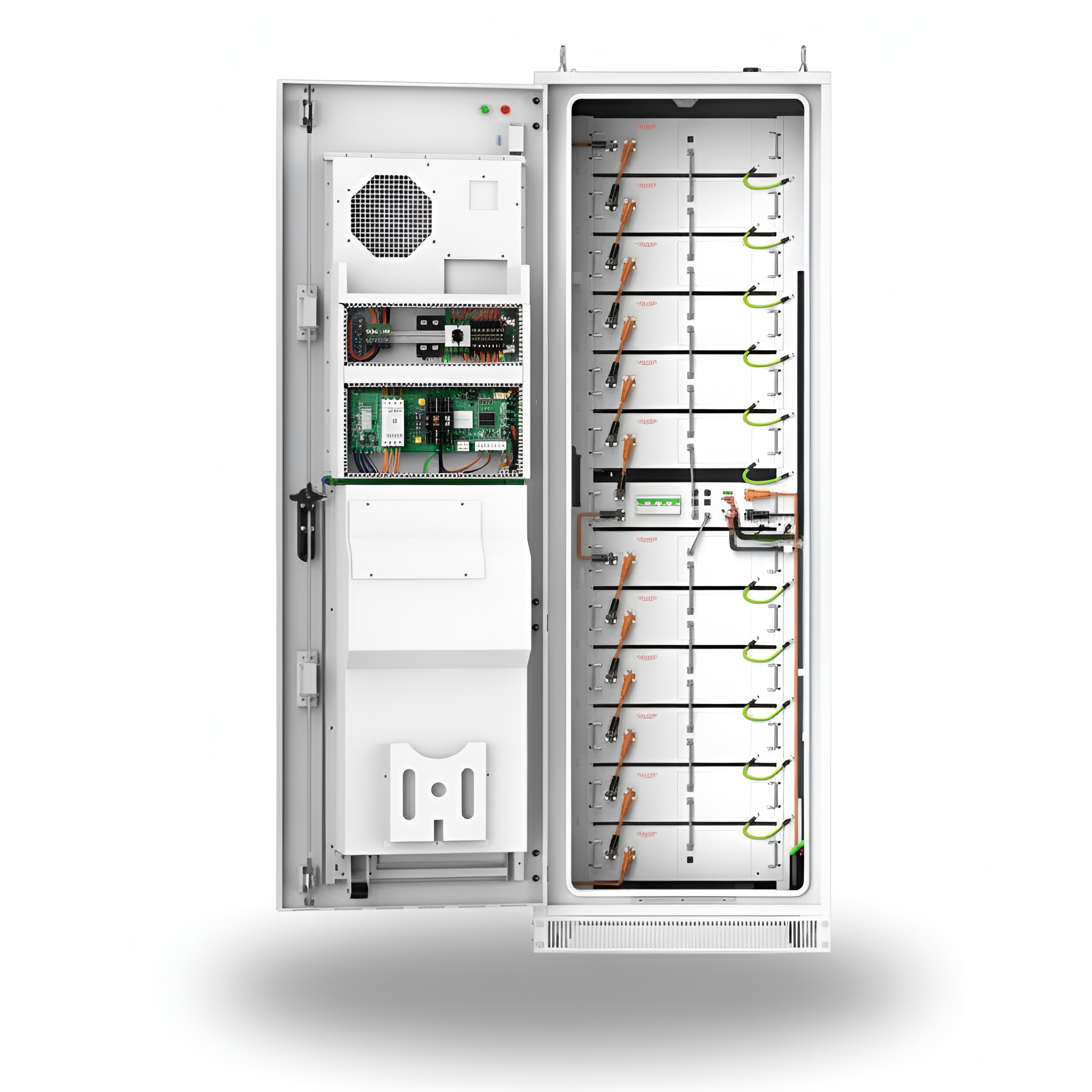

Upgrade your solar power system with the Luminey OASIS 60 HV 60kWh High Voltage Energy Storage System, designed for large residential, commercial, and industrial backup applications. Built with advanced lithium technology, this high-performance battery cabinet delivers exceptional energy density, long cycle life, and reliable high-voltage operation.
Key Features
-
60kWh Rated Energy – Ideal for high-demand power backup and solar storage.
-
High Voltage 614.4V System – Voltage range 537.6V to 691.2V.
-
Advanced Thermal Management – Built-in air-conditioning for -20°C to 55°C operation.
-
Long Cycle Life – Up to 6000 cycles at 90% DOD.
-
Modular Expansion – Supports up to 6 battery cabinets.
-
Strong Safety Protection – Overcharge, over-discharge, overcurrent, over-temperature & short-circuit protection.
-
Smart Communication Interfaces – CAN / RS485 / WiFi support.
-
Outdoor Ready – IP55 protection level for dust and water resistance
| Specification | Details |
|---|---|
| Model Type | CIESS 60 |
| Rated Energy | 60kWh |
| Battery Number | 12 pcs |
| Rated Voltage | 614.4V |
| Voltage Range | 537.6V – 691.2V |
| Max C-Rate | 1C |
| Cycle Life | 6000 cycles (25°C, 0.5C/0.5C, 90% DOD, EOL 70%) |
| Dimensions | 715 × 890 × 2140 mm (L×W×H) |
| Weight | 807kg |
| Expansion | Up to 6 battery cabinets |
| Protection Level | IP55 |
| Temperature Range | -20°C to 55°C |
| Recommended Storage Temp | 20°C – 30°C |
| Working Humidity | 10% – 95% RH (non-condensing) |
| Communication | CAN / RS485 / WiFi |
| Max Working Altitude | 2000m |
| Warranty | 5 Years* |
| Certifications | IEC62619, CE, UN38.3, IEC62477 |
| Basic Protection | Charge OV, Discharge UV, Overcurrent, Over-temperature, Short Circuit |
