Description

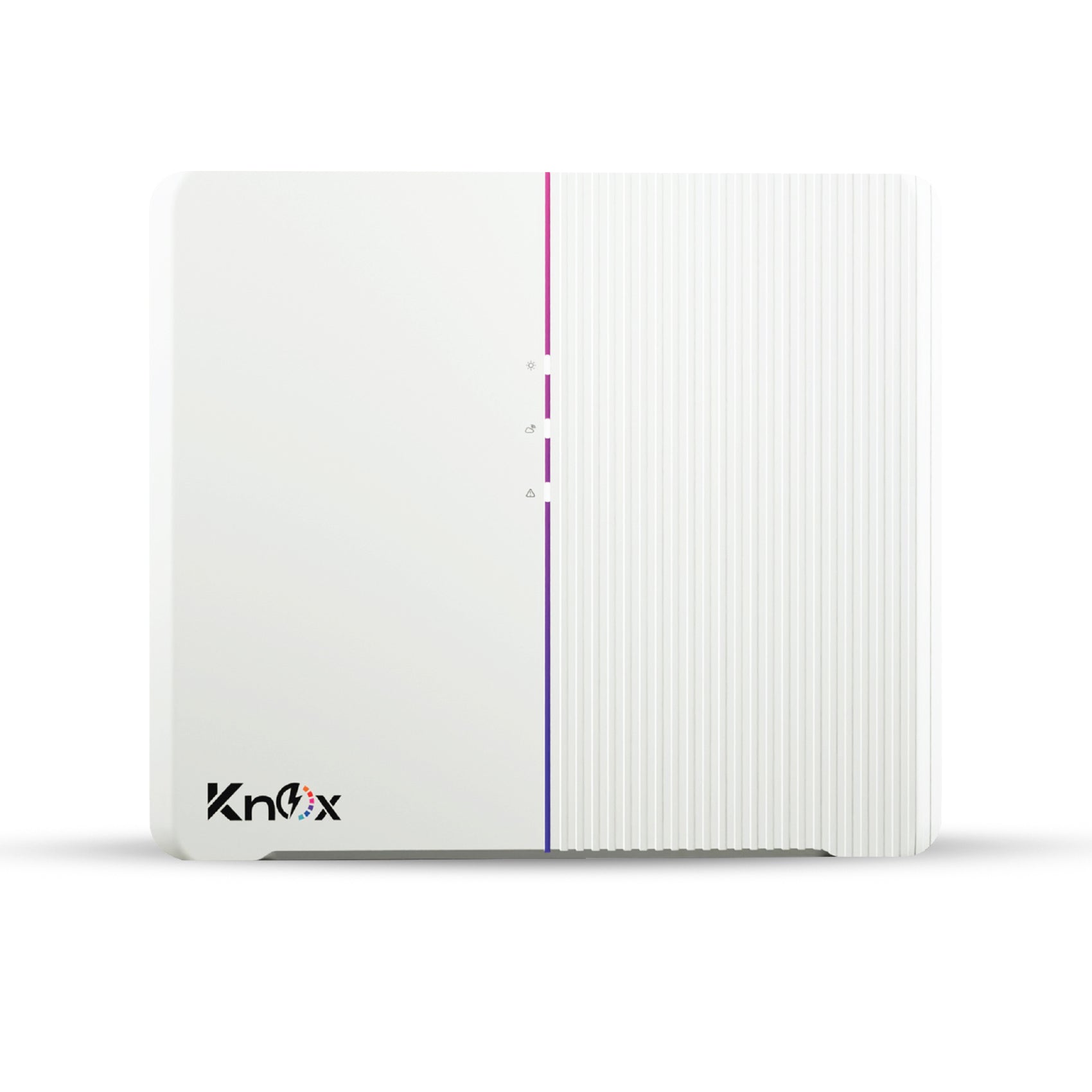

Boost your solar energy system with this 15,000W solar inverter, built for high performance and reliability. With support for up to 19,500W of PV input and a wide MPPT voltage range (150–1000V), it ensures maximum solar power conversion. This inverter features dual MPPT trackers, high input/output capacity, and a rugged IP66-rated design, making it ideal for residential and commercial installations.
Download DataSheet
|
Max. PV modules power (W)
|
22500
|
|
Max. input voltage (V)
|
1100
|
|
Initial feed-in voltage (V)
|
180
|
|
Min. input voltage (V)
|
125
|
|
DC Rated input voltage (V)
|
560
|
|
MPPT Voltage Range (V)
|
150–1000
|
|
Full load DC voltage range (V)
|
400–850
|
|
Max. DC input current (A)
|
32 / 20
|
|
Isc PV, Absolute current (A)
|
48 / 30
|
|
Number of MPPT Trackers
|
2
|
|
Strings per MPPT Tracker
|
2 / 1
|
|
Max. Output apparent power (VA)
|
16,500
|
|
Rated Output power (W)
|
15,000
|
|
Max. AC Output Current (A)
|
24.0
|
|
Nominal Grid Voltage (V)
|
230, 3/N/PE
|
|
Nominal Frequency (Hz)
|
50/60
|
|
Power Factor
|
0.8 ind ~ 0.80 cap
|
|
Topology
|
Non-isolated
|
|
Operating temperature range (°C)
|
-25 to +60
|
|
Degree of protection
|
IP66
|
