JVCO 13in1 63A WIFI Smart Switch with Monitoring and Protection

Description

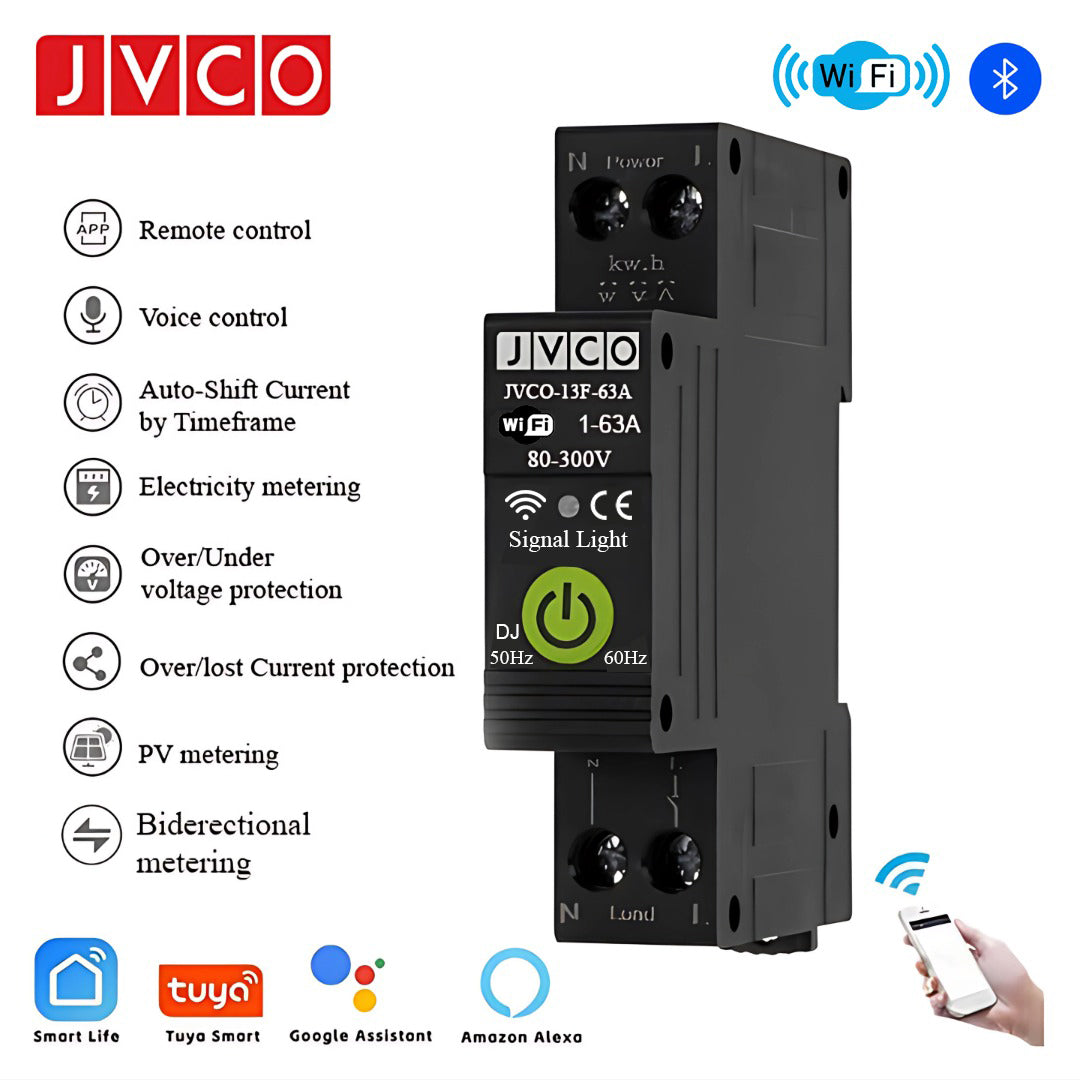

JVCO 13in1 63A WIFI Smart Switch with Monitoring and Protection

Note: Only accumulated export units are displayed. Charts for export units are unavailable.

The JVCO 13in1 63A WIFI Smart Switch offers a comprehensive solution for both energy monitoring and protection. With the convenience of app control via the Tuya Smart platform, this smart switch provides safety features such as overvoltage, undervoltage, overcurrent, and undercurrent protection. It’s ideal for managing and protecting your electrical system with real-time monitoring and remote control.

Key Features

• Over Voltage Protection: Automatically disconnects the power if the voltage exceeds the set threshold, protecting appliances from damage.
• Under Voltage Protection: Prevents operation when voltage falls below the safe limit.
• Over Current Protection: Disconnects the circuit if the current exceeds the rated value, ensuring safety for your devices.
• Timer Switch: Schedule the operation of connected devices with customizable timer settings.
• High Temperature Protection: Set a high temperature threshold via the app to prevent overheating.
• Action Thresholds: All protection parameters can be set with specific action thresholds for turning on or off.

Product Parameters

• Rated Supply Voltage: AC220V
• Rated Frequency: 50/60Hz
• Power Display Range: 0-99999.9kWh
• Protection Trip Action Time: < 0.5s
• Operation Voltage Range: AC80V-300V (Single Phase)
• Rated Current: 1-63A
• Operating Temperature: -30°C to 70°C
• Setting Range:
  • Over Voltage: 120-300V
  • Under Voltage: 80-210V
  • Reset Time: 1-30 times off/reset start delay (0s-9999s)

Additional Features

• Wi-Fi Control: Remotely control the device through the Tuya Smart App for iOS and Android.
• Fault Records: Keeps records of overvoltage, undervoltage, and current faults through the Tuya app.
• App Setup: Easy setup by scanning the QR code or searching for “Smart Life” in the Tuya Smart app.

Applications

• Home Automation: Ideal for remote monitoring and control of household appliances and energy usage.
• Energy Management: Use the bidirectional energy monitor to track and optimize energy consumption in both residential and small business setups.
• Electrical Protection: Provides critical protection to ensure appliances and electrical circuits are safe from damage due to power fluctuations or overloads.

The JVCO 13in1 63A WIFI Smart Switch is an advanced solution for energy management and electrical protection, offering convenience through smart features and app control.
