Description

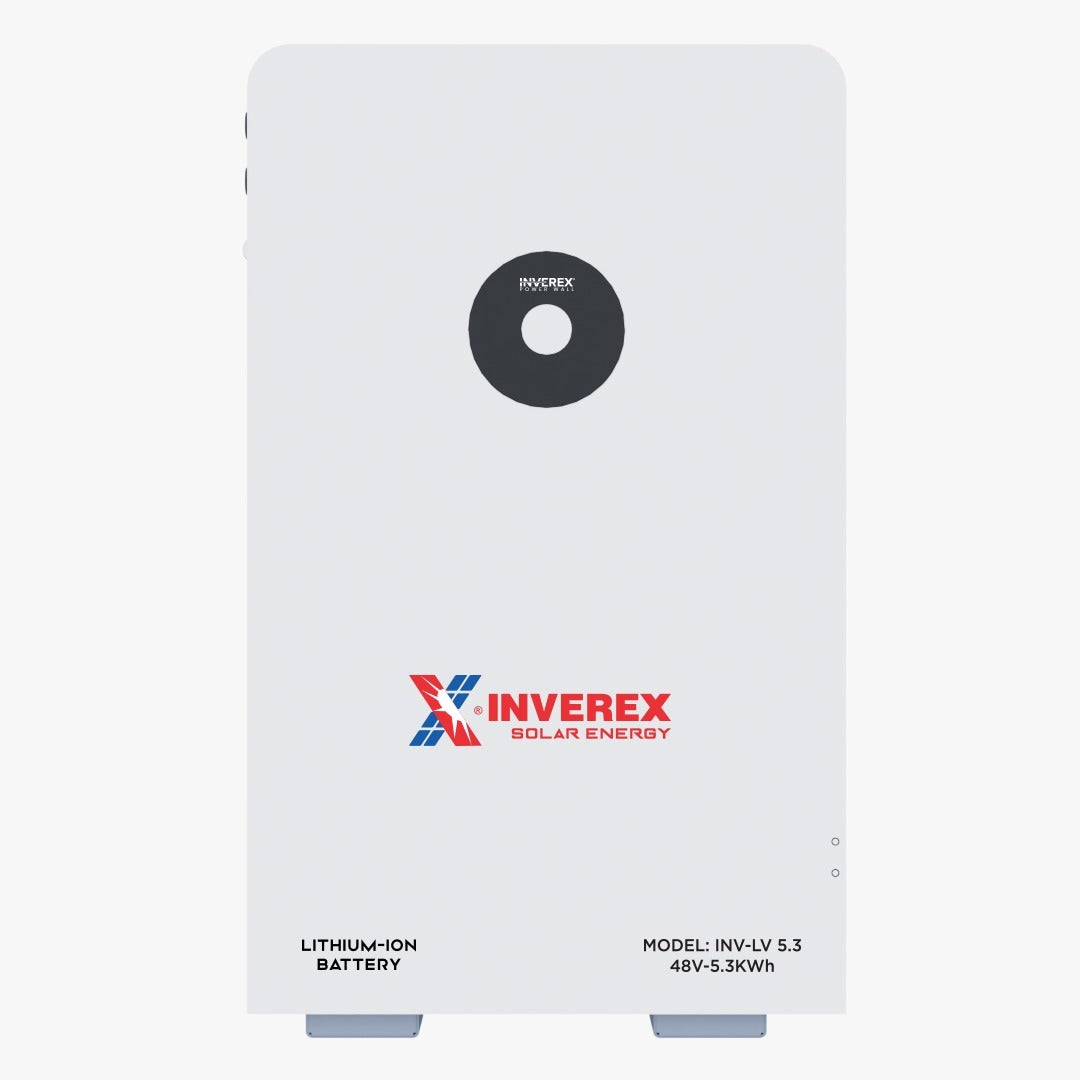

INV-LV5.3 Lithium-Ion Battery – 5.3kWh, IP65, Scalable Energy Storage
The INV-LV5.3 delivers 5.3kWh of clean, dependable power for residential solar systems and energy backups. This intelligent battery offers high efficiency, robust protection, and remote manageability, making it a scalable solution for mid-sized home energy demands.
Key Features
-
5.3kWh energy capacity for medium to large loads.
-
Compatible with all inverter brands.
-
Parallel up to 32 units for large system designs.
-
IP65 enclosure for outdoor protection.
-
High discharge capability with peak 2C performance.
-
Built-in BMS and circuit safety.
-
Remote monitoring and auto configuration.
Technical Specifications
| Category | Specification |
|---|---|
| Model | INV-LV5.3 |
| Battery Chemistry | LiFePO₄ |
| Nominal Energy | 5.3kWh |
| Nominal Voltage | 51.2V |
| Max Parallel Units | 32 |
| Current Limit | 10A |
| Max Charge Rate | 1C |
| Max Discharge Rate | 1.2C continuous / 2C (10s) |
| Operating Temperature | -20°C to 55°C |
| Protection Level | IP65 |
| Cooling | Natural |
| Cycle Life | ≥6000 @ 70% EOL |
| Communication | Remote monitoring supported |
| Networking | Auto (No DIP switch) |
| Safety Features | Intelligent BMS, Breaker |
| Warranty | 5 Years |
