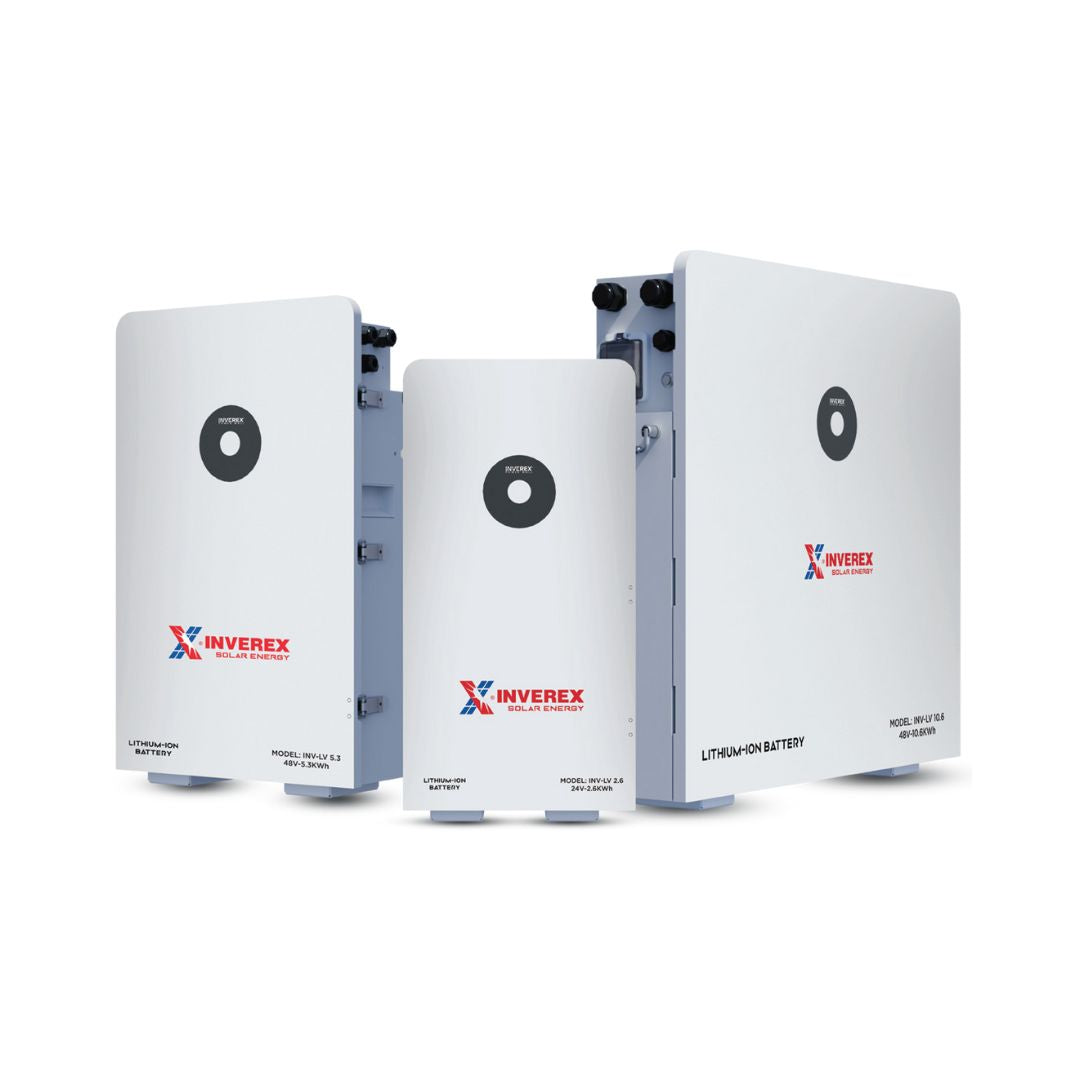

INV-LV10.6 Lithium-Ion Battery – 10.6kWh, Heavy-Duty, Smart Energy Storage
The INV-LV10.6 is a high-capacity 10.6kWh lithium battery designed for large-scale energy storage applications. It delivers excellent performance, rugged safety, and intelligent management features — perfect for homes, small businesses, and solar backup systems needing maximum energy reserves.
Key Features
-
Large 10.6kWh capacity for whole-home or commercial use.
-
Durable IP65-rated case and natural cooling design.
-
Parallel support for system expansion (up to 32 batteries).
-
1C charge, 1.2C discharge, with 2C peak.
-
Smart BMS with over 6000-cycle lifespan.
-
No DIP switch needed – auto networking supported.
-
Remote monitoring and firmware upgrades enabled.
Technical Specifications
| Category | Specification |
|---|---|
| Model | INV-LV10.6 |
| Battery Chemistry | LiFePO₄ |
| Nominal Energy | 10.6kWh |
| Nominal Voltage | 51.2V |
| Max Parallel Units | 32 |
| Current Limit | 10A |
| Max Charge Rate | 1C |
| Max Discharge Rate | 1.2C continuous / 2C (10s) |
| Operating Temperature | -20°C to 55°C |
| Protection Level | IP65 |
| Cooling | Natural |
| Cycle Life | ≥6000 @ 70% EOL |
| Communication | Remote monitoring supported |
| Networking | Auto (No DIP switch) |
| Safety Features | Intelligent BMS, Breaker |
| Warranty | 5 Years |
