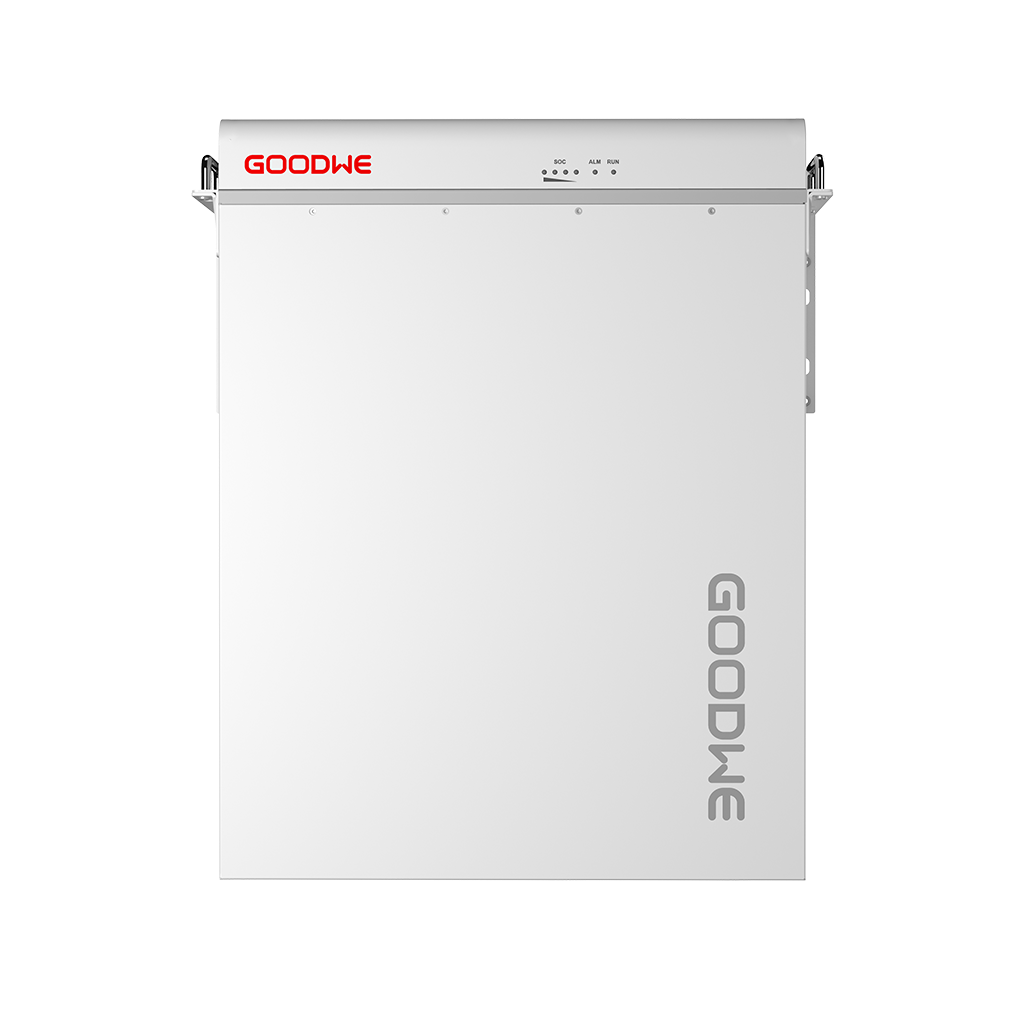

GoodWe Lynx A G3 Low Voltage Lithium Battery – Scalable Energy Storage Solution for Homes
The GoodWe Lynx A G3 Series is a low-voltage lithium battery system built on reliable Lithium Iron Phosphate (LFP) cell technology. Designed specifically for residential use, it delivers dependable solar backup and optimizes energy self-consumption. With a high energy density, compact design, and seamless expandability, it provides homeowners with a flexible, long-lasting storage solution. Each unit features an integrated Battery Management System (BMS) and supports up to 30 units in parallel, scaling capacity up to 150kWh. The system is compatible with GoodWe residential storage inverters, ensuring smooth integration and performance.
Key Features
-
Reliable LFP Cell Technology
Equipped with Lithium Iron Phosphate (LFP) cells for enhanced safety, stability, and long-term performance. -
Long Battery Life
Supports over 6000 charge/discharge cycles with 70% end-of-life (EOL) capacity, ensuring years of dependable use. -
Scalable System Capacity
Connect up to 30 battery units in parallel, supporting a total system capacity of up to 150kWh to meet growing energy demands. -
High Discharge Capability
Delivers a continuous discharge current of up to 150A, suitable for heavy residential loads. -
Built-in Battery Management System (BMS)
Each battery pack includes a dedicated BMS for real-time monitoring, safety, and performance optimization. -
Remote Diagnosis & Firmware Updates
Enables remote diagnostics and software updates via compatible GoodWe inverters, reducing maintenance hassle. -
Flexible Installation Options
Supports various parallel connection types including hand-to-hand, busbar, and combiner box setups, allowing for installation versatility. -
Compact & Lightweight Design
Space-saving form factor makes it easy to transport and install in tight residential areas. -
Full Compatibility
Seamlessly integrates with GoodWe residential hybrid/storage inverters, ensuring system-wide compatibility and efficiency.
Technical Specifications
| Specification | LX A5.0-30 |
| Nominal Battery Energy (kWh) | 5.12 |
| Usable Energy (kWh)*1 | 5 |
| Cell Type | LFP (LiFePO4) |
| Operating Voltage Range (V) | 43.20 ~ 58.24 |
| Nominal Charge Current (A)*2 | 60 |
| Max. Continuous Charge Current (A)*2*3 | 90 |
| Nominal Discharge Current (A)*2 | 100 |
| Max. Continuous Discharge Current (A)*2*3 | 150 |
| Max. Pulse Discharging Current (A)*2*3 | <200 (30s) |
| Max. Continuous Discharging Power (W)*2*3 | 7200 |
| Communication | CAN |
| Operating Temperature (°C) | Charge: 0<T≤55 | Discharge: -20<T≤55 |
| Max. Storage Time | 12 Months (maintenance-free) |
| Max. Operating Altitude (m) | 4000 |
| Weight (kg) | 44 |
| Dimensions (W × H × D mm) | 442 × 133 × 520 (Core) / 483 × 133 × 559 (Max) |
| Ingress Protection Rating | IP20 |
| Applications | On Grid / On Grid + Backup / Off Grid |
| Scalability | Max. 30 in Parallel (150kWh) (Hand to hand / Combiner box / Busbar) |
| Mounting Method | 19-inch rack / Floor-Mounted / Wall-Mounted |
| Round-trip Efficiency*1 | ≥96% |
| Cycle Life | 6000@25 ± 2°C 0.2C 70%EOL |
| Safety | IEC62619, IEC63056, N140 |
| EMC | EN IEC 61000-6-1, -6-2, -6-3, -6-4 |
| Transportation | UN38.3, ADR |
| Environment | ROHS |
