Description

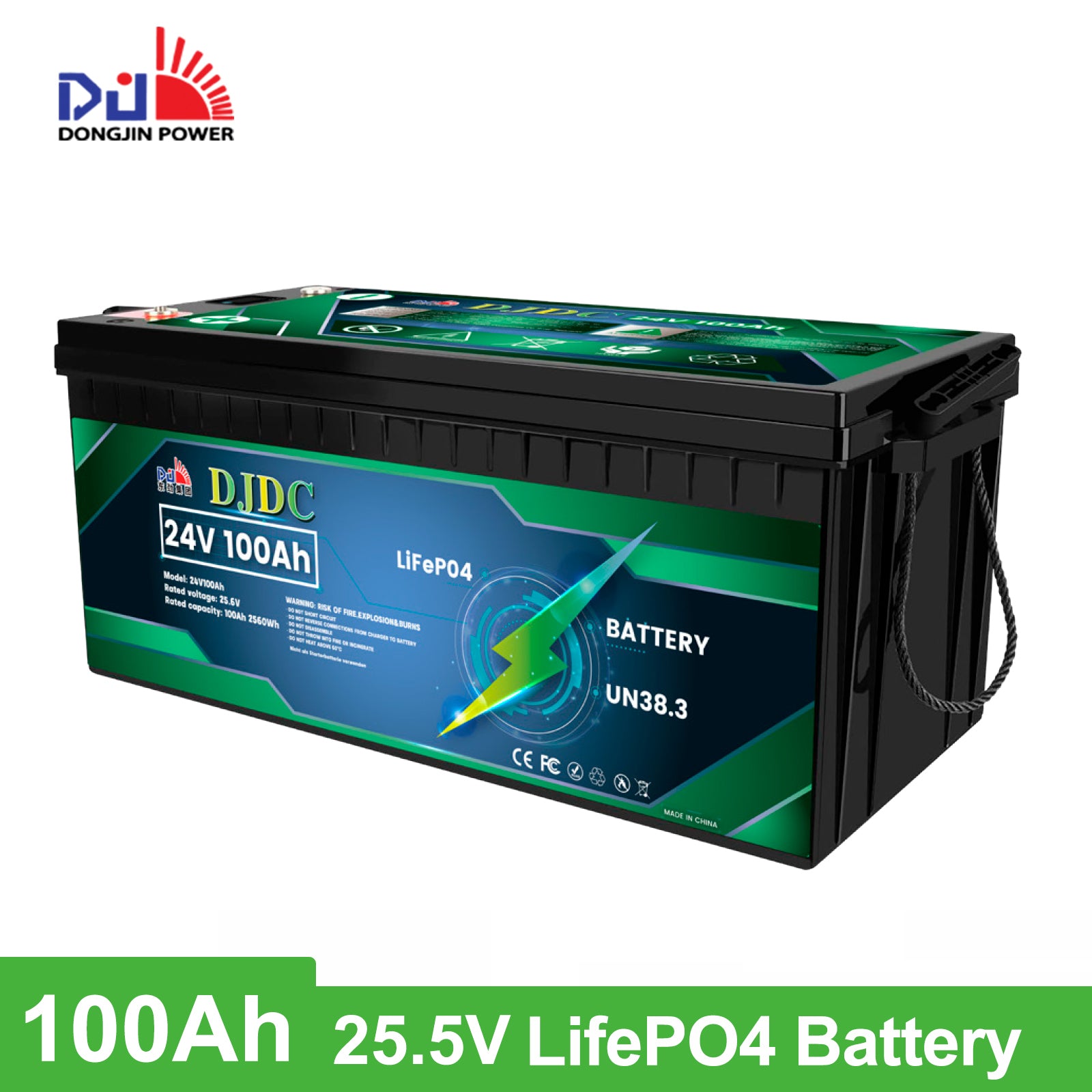

DJDC 24V 100Ah LiFePO4 Deep Cycle Battery
Reliable Power for Your Off-Grid Needs
Upgrade your energy system with the DJDC 24V 100Ah LiFePO4 Battery, a compact and lightweight powerhouse designed for trolling motors, solar systems, RVs, kayaks, and more. Built with Grade-A prismatic cells and a 100A Smart BMS, this battery delivers long-lasting, safe, and efficient energy for all your adventures.
Key Features:
- High Capacity & Energy: 100Ah with 2560Wh energy output
- Grade-A LiFePO4 Cells: Safe, stable, and long-lasting (4000–15,000 cycles)
- Smart 100A BMS: Full protection from overcharge, discharge, short circuit & temperature extremes
- High Power Output: 100A continuous
- Fast Charging: Supports up to 50A max charge current
- Durable & Weather-Resistant: IP65-rated ABS+PC shell for outdoor use
- Compact & Strong: 20.55″ x 9.45″ x 8.58″, 47.08 lbs – robust yet manageable
- Wide Temperature Range: Operates from -20°C to 60°C
| Model | DJDC 24V100AH |
| Nominal Voltage | 25.6V |
| Rated Capacity | 100Ah |
| Battery Energy | 2560Wh |
| Recommend Charge Current | 20A |
| Max Charge Current | 50A |
| Max Continuous Discharge Current | 100A |
| Charge Temperature Range | 0-45°C |
| Discharge Temperature Range | -20-60°C |
| Recommend Charge Voltage | 14.4V±0.2V |
| Max Charge Voltage | 29.2V |
| Discharge Cut-Off Voltage | 21.6V |
| Cell Type | LiFePO4 Prismatic A grade |
| Certification | CE / FCC / ROHS / UN38.3 / MSDS |
| Internal Resistance (M Ω) | ≤18mΩ |
| Protection | BMS |
| Communication Interference | Smart Display and Bluetooth |
| Cycle Life | 6000 Cycles @ 80% |
| Terminal | M8, 9 / 16L, 5 / 16D(inch) |
| Protection Level | IP66 |
| Battery Size (LxWxH) mm | 522x240x218 |
| Battery Weight (Kg) | 20.5 |
