Description

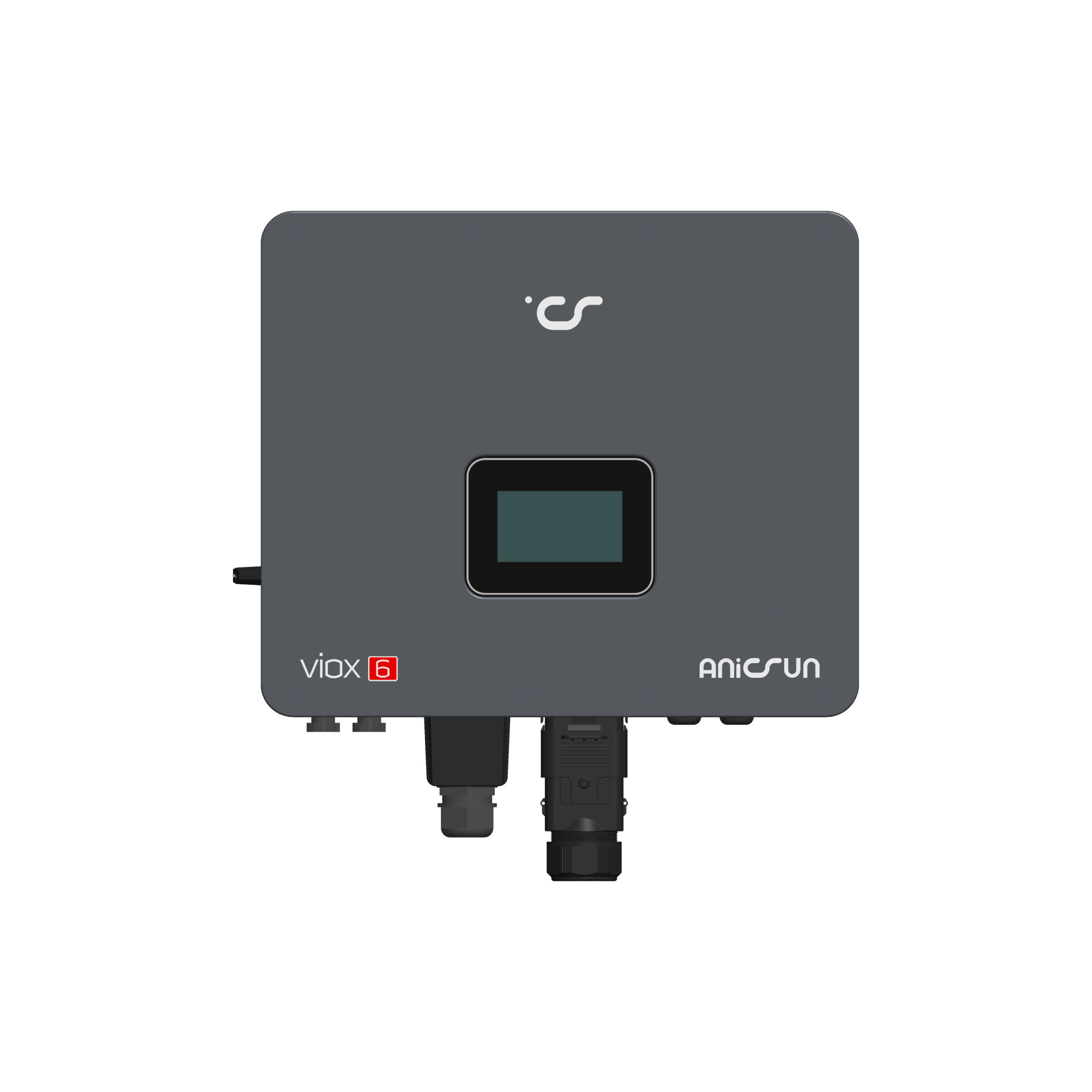

The Aniscun VIOX 6 6kW Single Phase Hybrid Inverter is a high-performance solar solution designed for residential and small commercial power systems. With IP65 protection, a wide 100–550V PV input range, and 97.2% maximum efficiency, it delivers reliable, safe, and efficient solar energy conversion.
Engineered for durability and intelligent energy management, this hybrid inverter supports high PV array capacity and features a modern touch screen LCD display for easy monitoring and system control.
Key Features:
6kW Rated Output Power
Supports up to 9kW PV Array Power
Hybrid Function – Compatible with Battery and Solar
Wide PV Input Voltage Range: 100–550V
Touch Screen LCD Display
230V AC Output (Battery Mode)
IP65 Rated – Dust and Water Resistant
Maximum Efficiency up to 97.2%
| Specification | Details |
|---|---|
| Model | VIOX Series 6kW |
| Rated Power | 6kW |
| Maximum PV Array Power | 9kW (6kW Model) |
| Wide PV Input Voltage Range | 100 – 550 V |
| AC Voltage Regulation (Battery Mode) | 230V |
| Maximum Efficiency | 97.2% |
| Ingress Protection | IP65 |
| Display / Operation | Touch Screen LCD Display |
| Dimensions (D × W × H) | 455 × 215 × 385 mm |
| Net Weight | 20.7 kg |
- See everything widely!
Remote Data Monitoring
Dual Output
5 Year Product & 2 Year Service Warranty
Lithium and Lead Acid Supported
Friendly & Thoughtful Design
Maximum PV INPUT current16 A
RGB LightsNo
Operating temperature Celcius-25°C to 60°C
Input Voltage230 VAC
BMSYes
