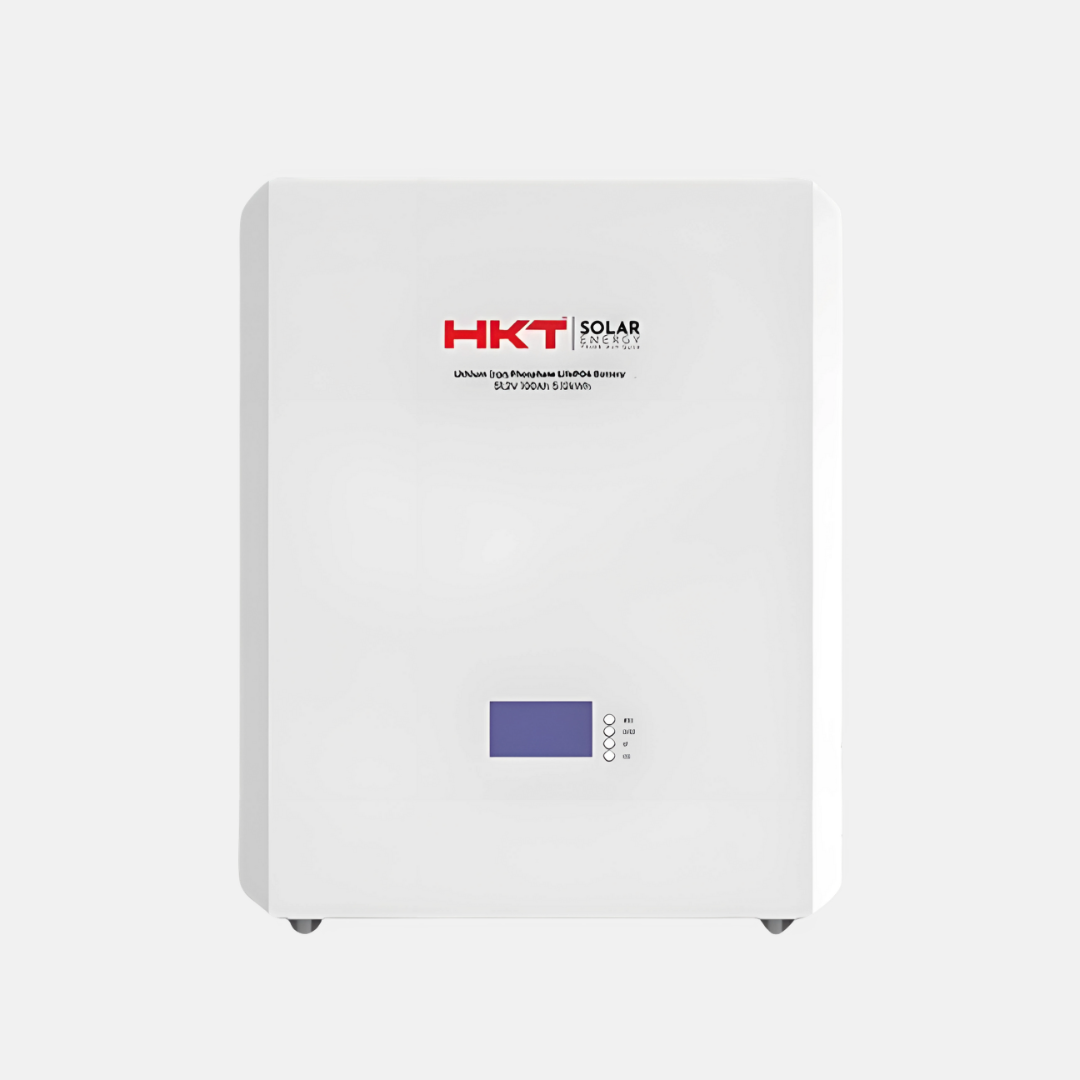

HKT PW51100-S Lithium-Ion Battery (5.12kWh, 51.2V)
The HKT PW51100-S is a high-performance lithium-ion battery designed for solar energy storage. With a 5.12kWh capacity and the ability to scale up to 91.92kWh, it is ideal for residential and commercial applications. Featuring CAN/RS485 communication, broad inverter compatibility, and a 20-year design life, it ensures long-lasting and efficient energy storage.
Key Features
- High Energy Capacity – Provides 5.12kWh of usable energy, supporting both small and large solar systems.
- Scalability – Supports up to 16 batteries in parallel, expanding capacity to 91.92kWh.
- Long Lifespan – Designed for 20 years of reliable performance.
- Wide Operating Voltage (43V – 58.4V) – Ensures stable power supply in various conditions.
- High Power Output – Delivers 5kW continuous and 10kW peak discharge power for demanding loads.
- Rugged and Durable – Operates efficiently in extreme temperatures from -20°C to 55°C.
- Multiple Installation Options – Suitable for indoor and outdoor mounting, either floor-standing or wall-mounted.
- Advanced Communication Interface – Supports CAN/RS485 with optional WiFi/BLE for smart monitoring.
- Broad Inverter Compatibility – Works with HKT, Luxpowertek, SRNE, Voltronics, Growatt, Victron, SMA, Deye, Sol-Ark, Goodwe, SAJ, Solis, and more.
- Certified for Safety – Meets international standards EN 61000-6-1, EN 61000-6-3, IEC6219, UN38.3.
Specifications
| Model | PW51100-S |
| Feature | Specification |
| General | |
| Nominal Energy | 5.12 kWh |
| Usable Energy | 5.12 kWh |
| Scalability | Max. 16 in parallel (91.92 kWh) |
| Dimensions (W x H x D) | 532 x 425 x 170 mm |
| Weight | ~46 kg |
| Installation | Indoor/Outdoor, Floor/Wall Mounted |
| Design Life | 20 Years |
| Electrical | |
| Nominal Voltage | 51.2 V |
| Operating Voltage Range | 43 V ~ 58.4 V |
| Max. Power | 5 kW |
| Peak Discharge Power | 10 kW for 1 sec |
| Operation | |
| Charge Temperature | 0°C ~ 55°C |
| Discharge Temperature | -20°C ~ 55°C |
| Storage Temperature | -20°C ~ 45°C |
| Humidity | 5% ~ 95% RH (No Condensation) |
| Altitude | < 4000 m |
| Ingress Protection | IP21 |
| Communication Interface | CAN/RS485 (Optional: WiFi/BLE) |
| Certifications | EN 61000-6-1, EN 61000-6-3, IEC6219, UN38.3 |
| Compatible Inverters | HKT Inverters, Luxpowertek, SRNE, Voltronics, Growatt, Victron, SMA, Deye, Sol-Ark, Goodwee, SAJ, Solis, etc. |
The HKT PW51100-S lithium-ion battery is a powerful and scalable solution for those seeking reliable solar energy storage with long life and high efficiency.
